Dormer/ Design No. 96 - Drumlayne

Price: € 800.00

Bedrooms:  5
Floor Area:  293.07 Sqr. M
Frontage:  17.42
Overall Height:  7.03

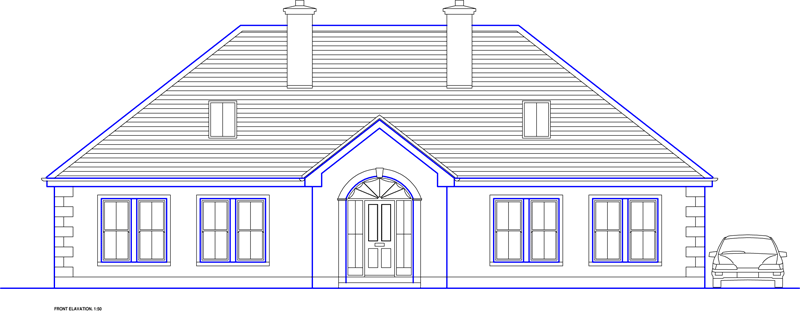

Description: This lodge style dormer dwelling has a large floor area and is designed for full family accommodation. Five good sized bedrooms are provided, two in the dormer area. The ground floor sleeping areas are in a self contained section. The living rooms are well laid out and a draught porch restricts heat loss at the front entrance. The house has a traditional style elevation.

 Dimensions:

Ground floor











Kitchen/dining room
6.10
M
x
6.00
M
Utility room
2.85
M
x
2.80
M
Bathroom
2.80
M
x
1.50
M
Family room
6.40
M
x
4.35
M
Sitting room
6.40
M
x
4.60
M
Hall & stairs
3.60
W
-


Draught porch
2.88
M
x
2.06
M
*Bedroom 1
4.20
M
x
4.00
M
Ensuite bathroom
2.40
M
x
1.60
M
Bedroom 2
4.60
M
x
3.50
M
Bathroom
3.39
M
x
2.15
M
Bedroom 3
4.60
M
x
3.50
M
Study
4.60
M
x
3.00
M






First floor











*Bedroom 4
3.45
M
x
3.00
M
Bedroom 5
4.40
M
x
4.02
M
Bathroom
2.99
M
x
1.30
M
Landing with storage presses
3.06
W
-



Notes
 *Excluding wardrobe.





Enquire about ordering this item »




House Plans: No. 96 - Drumlayne

Plan Slides



Plan Downloads

Download this file   Brochure 96 (159 kb)

Plan Samples

Planning Stage

Example of a completed Planning/Construction Stage Plan, seven copies of the plan and Building Specification are included with your order.View PDF »

Site Layout Plan

Site Layout Plan/Site Location Maps are required for a Planning Application and set out the site dimensions, orientation, dwelling/garage location and other required details.View PDF »

Landscaping Proposal

Most Local Authorities require a Landscaping Proposal to form part of a Planning Application and setting out the site dimensions, orientation, dwelling/garage location, defined site boundaries, lawn areas, planting and schedule of species.View PDF »
